Wacom Bamboo

Product name

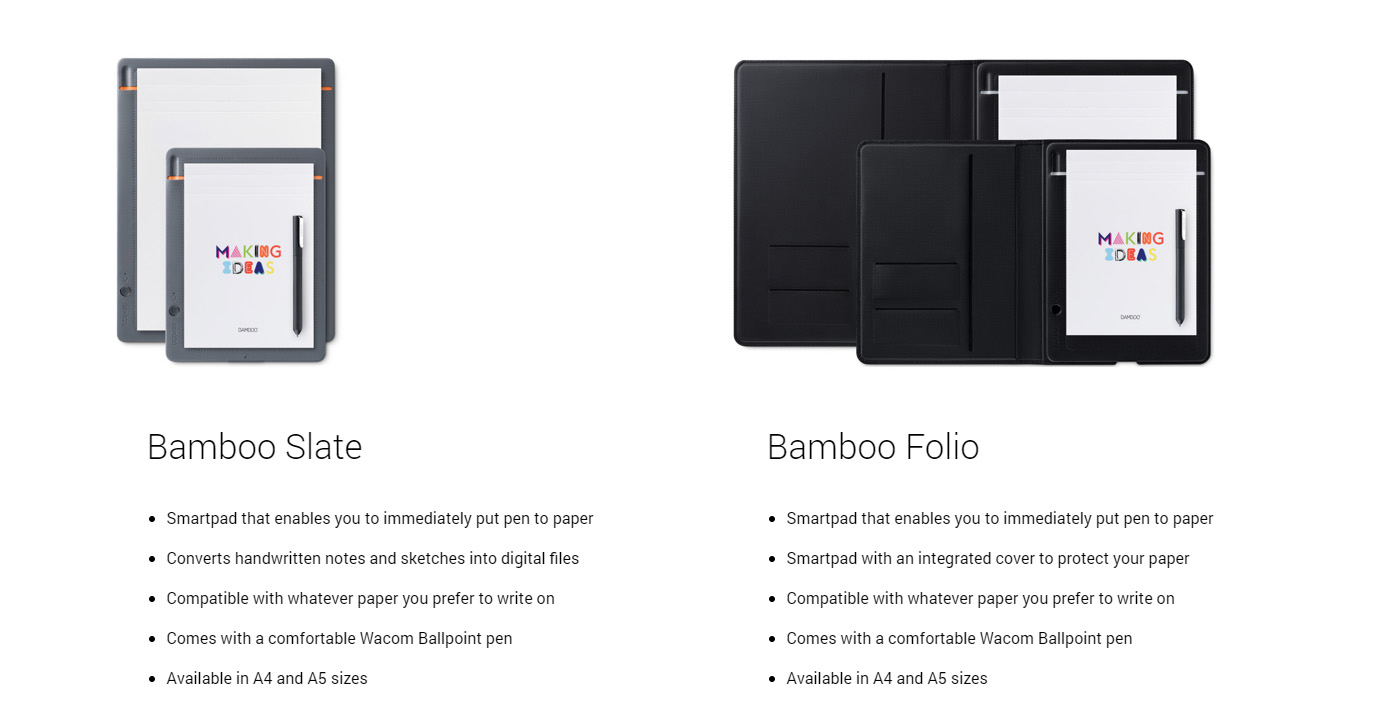

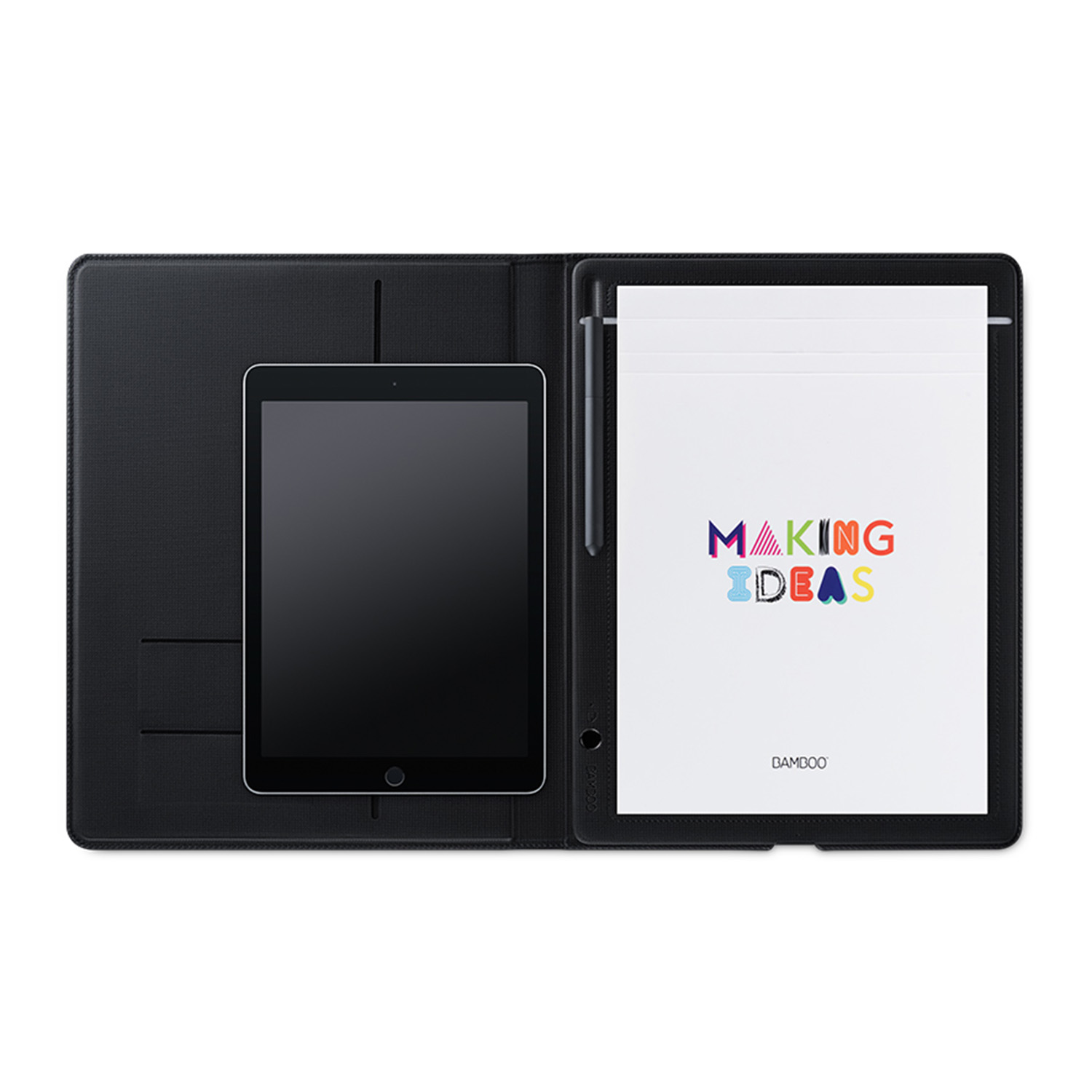

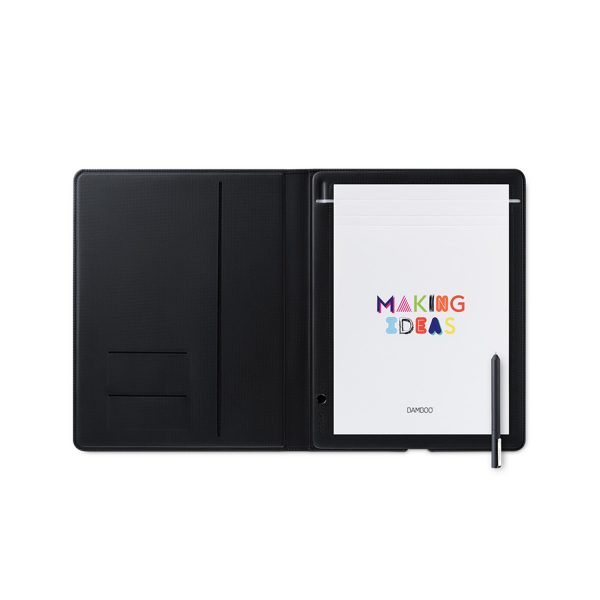

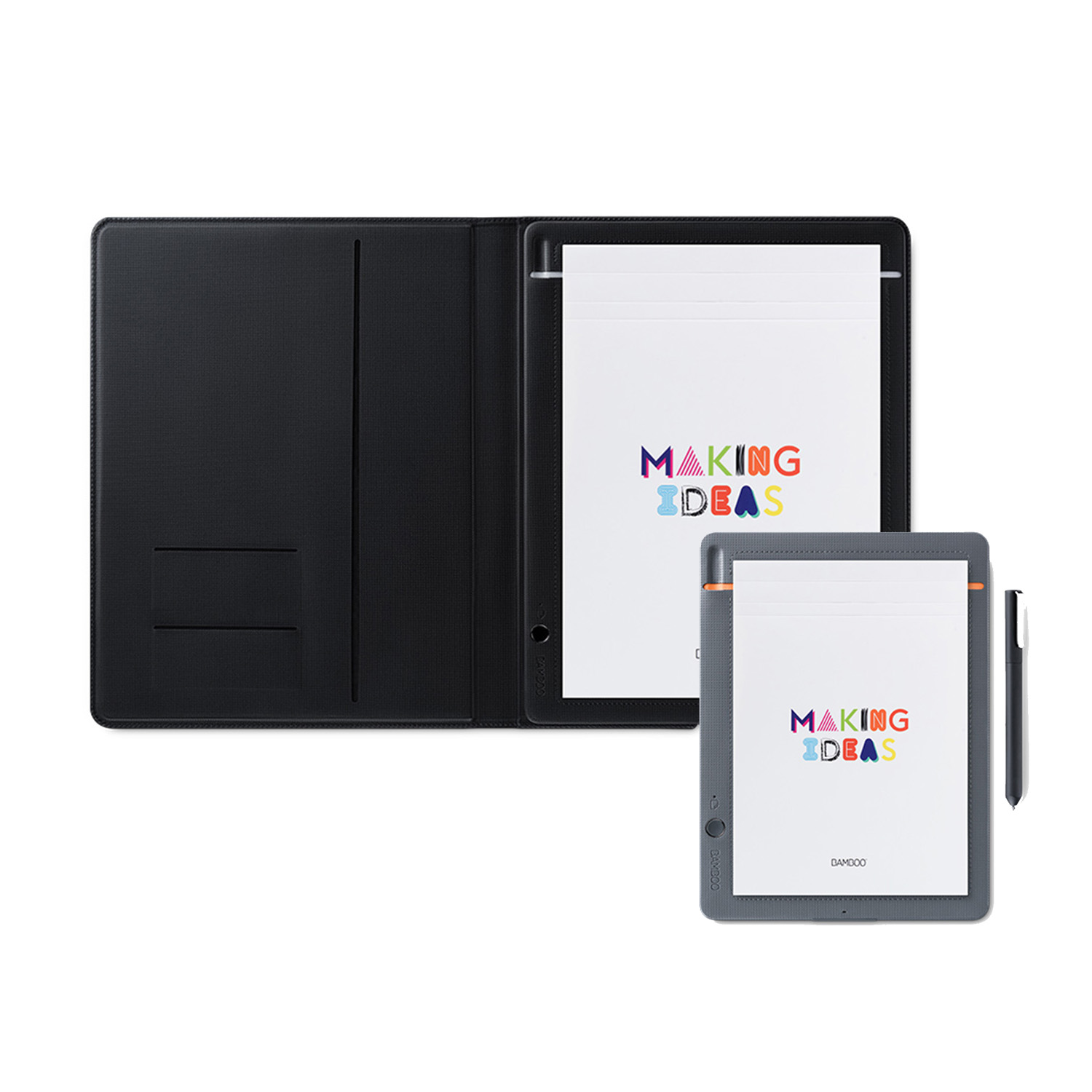

• Bamboo Folio

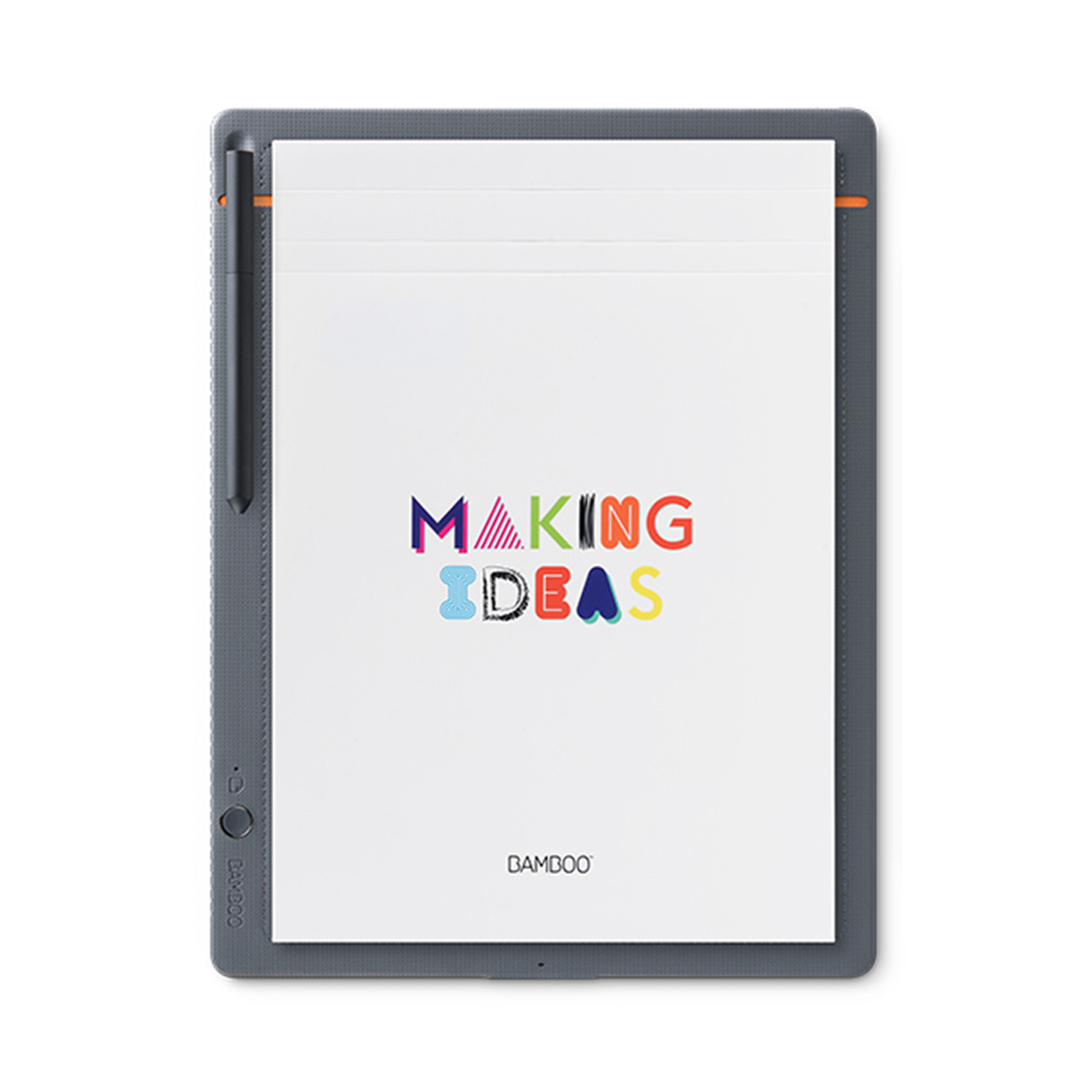

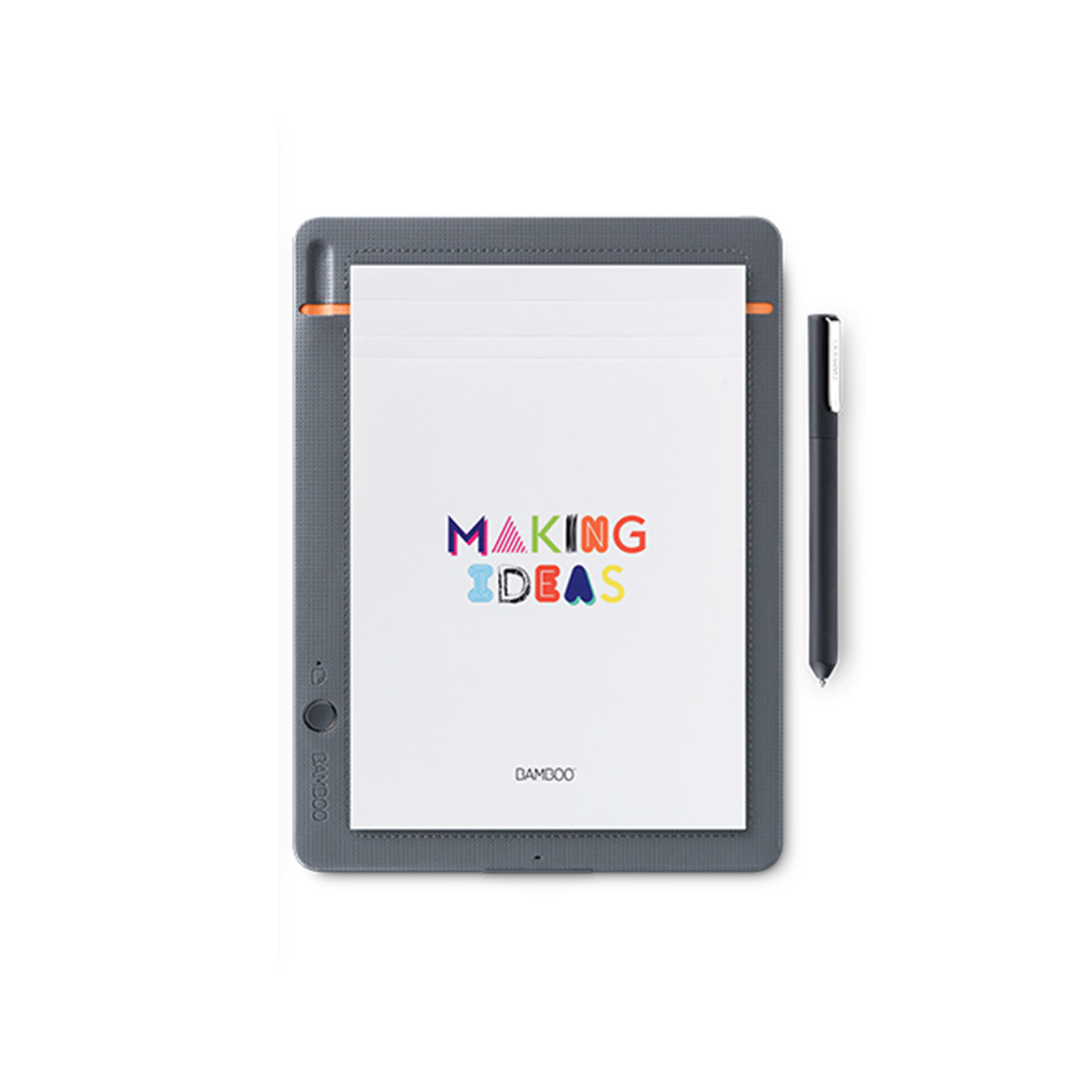

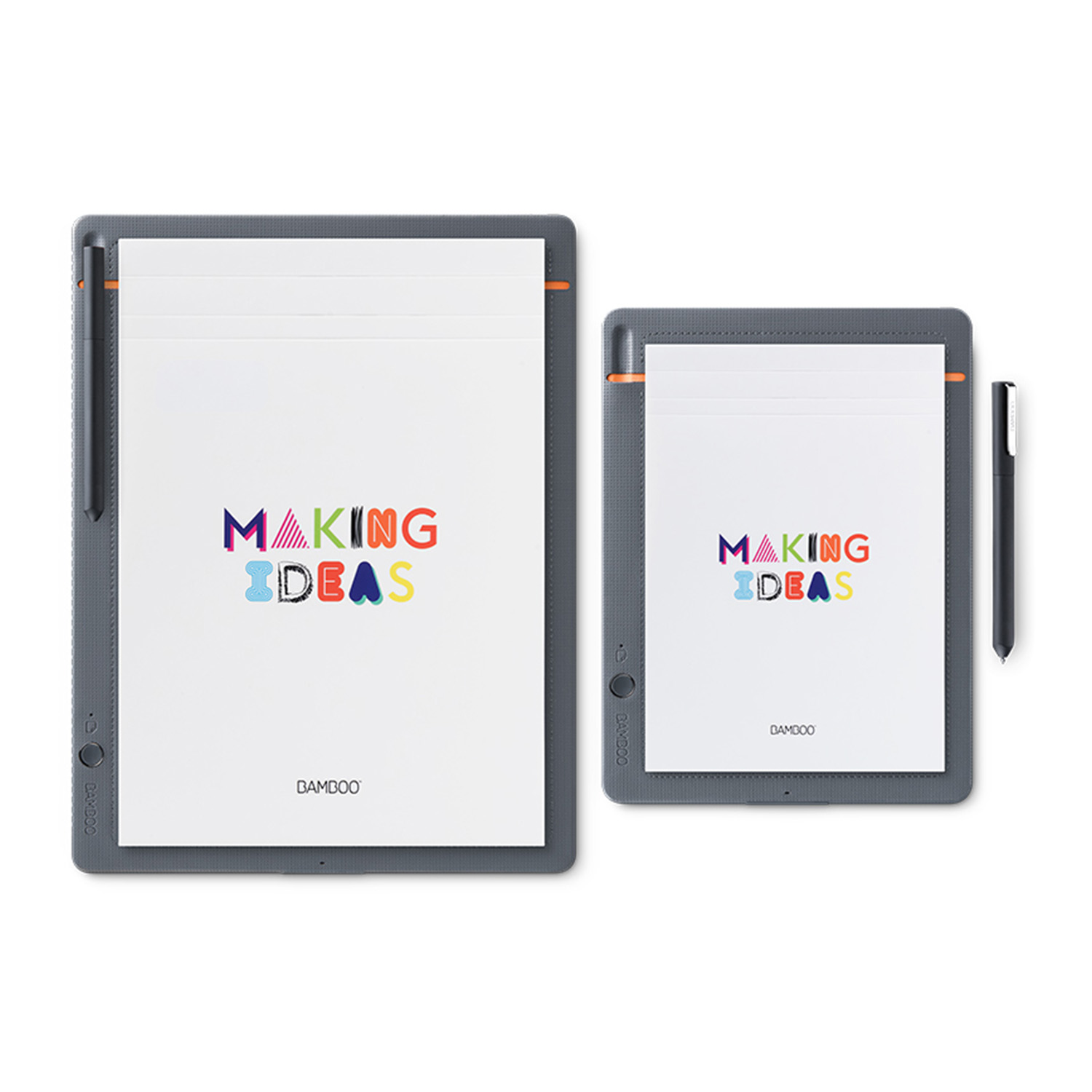

• Bamboo Slate

Product Type

Smartpad

Model number

-CDS610G (Bamboo Folio Small)
-CDS810G (Bamboo Folio Large)

-CDS610S (Bamboo Slate Small)
-CDS810S (Bamboo Slate Large)

Compatibility

Bluetooth® enabled devices with Wacom Inkspace app* including iOS and Android smartphones and tablets, Windows 10 and MacOS PCs, internet connection, notepad thickness about 80 pages.

Check www.wacom.com/comp for a list of compatible devices

*Register Wacom ID to activate free Inkspace Plus.

Dimensions (H x W x D)

Bamboo Folio Large

13.3 x 10.6 x 0.7 in 338 x 268 x 19 mm
Bamboo Slate Large

13 x 10 x 0.3 in 330 x 254 x 7 mm
Bamboo Folio Small

10.1 x 7.9 x 0.7 in 257 x 200 x 19 mm
Bamboo Slate Small

9.8 x 7.3 x 0.3 in 249 x 186 x 7 mm

Weight

-Bamboo Folio Large 28.6 oz 810 g
-Bamboo Slate Large 16.6 oz 472 g
-Bamboo Folio Small 16.2 oz 460 g
-Bamboo Slate Small 9.3 oz 264 g

What’s included

-Smartpad
-Pen with one extra refill
-Notepad

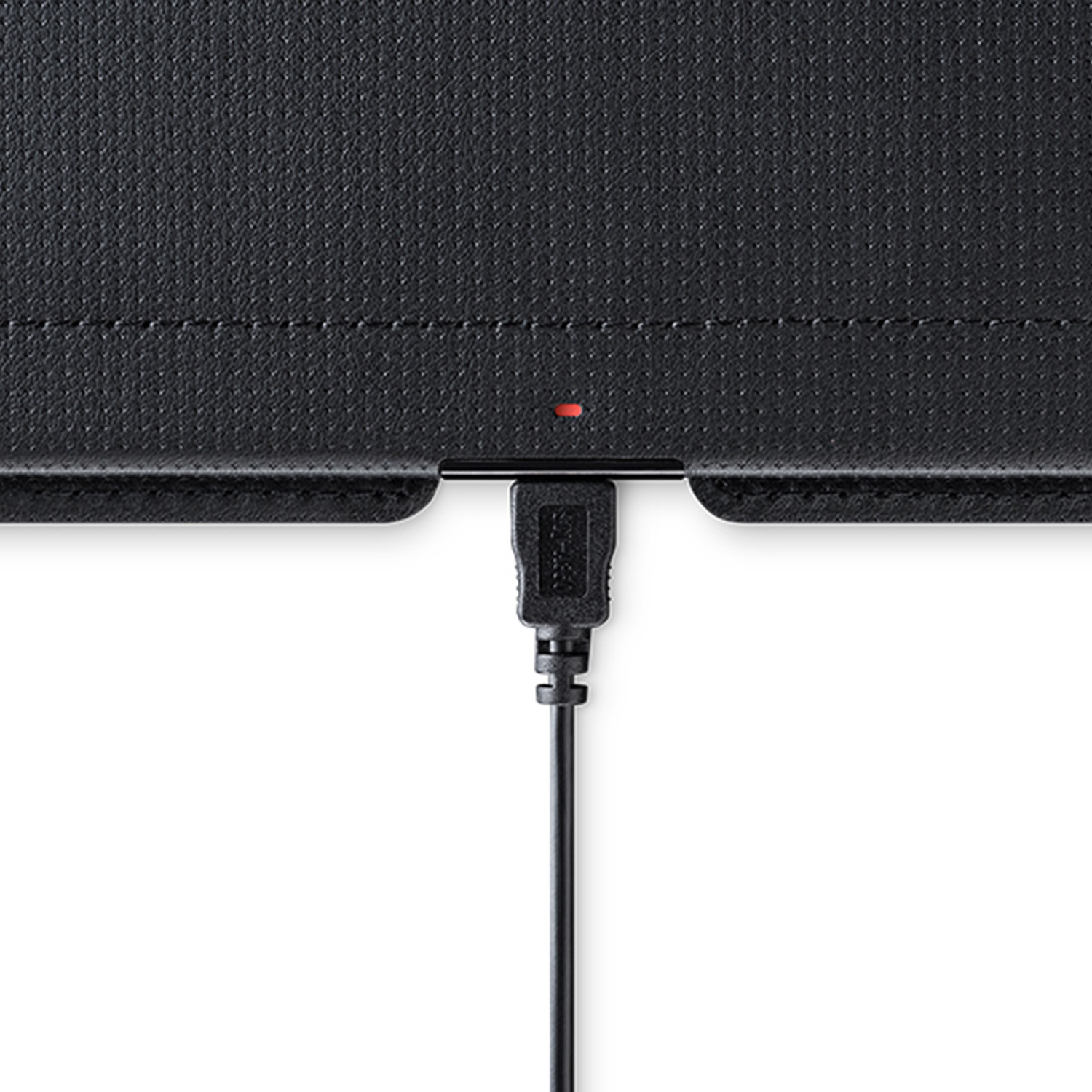

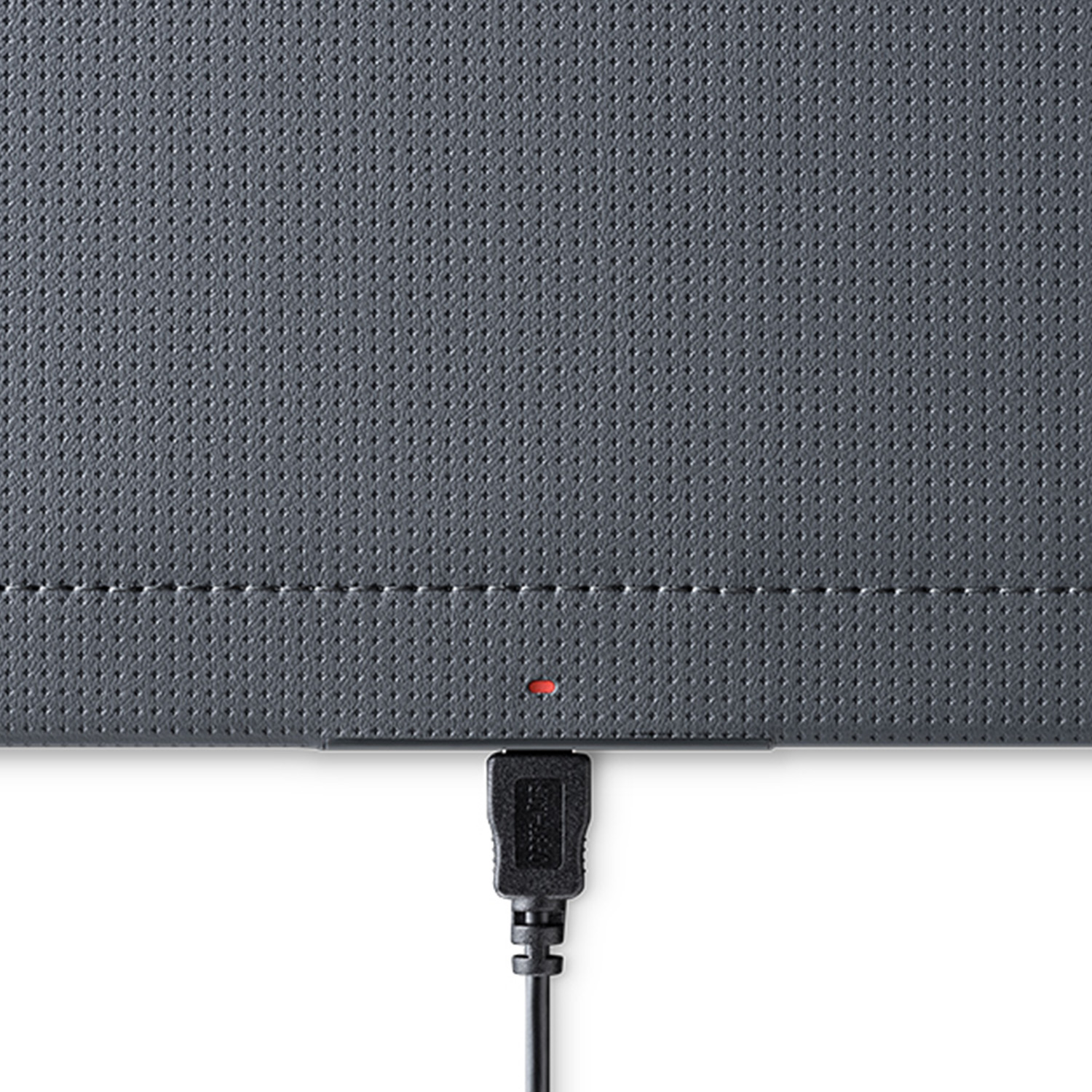

-Micro USB cable
-Quick start guide
-(smartphone and tablet not included)

Warranty

Europe

-2 years in Europe, Africa, and Middle East

Global

-1 year in USA, Canada, Central America, South America, and Asia Pacific.

Additional Accessories

ACK22207 – Ink cartridges, 3 pack

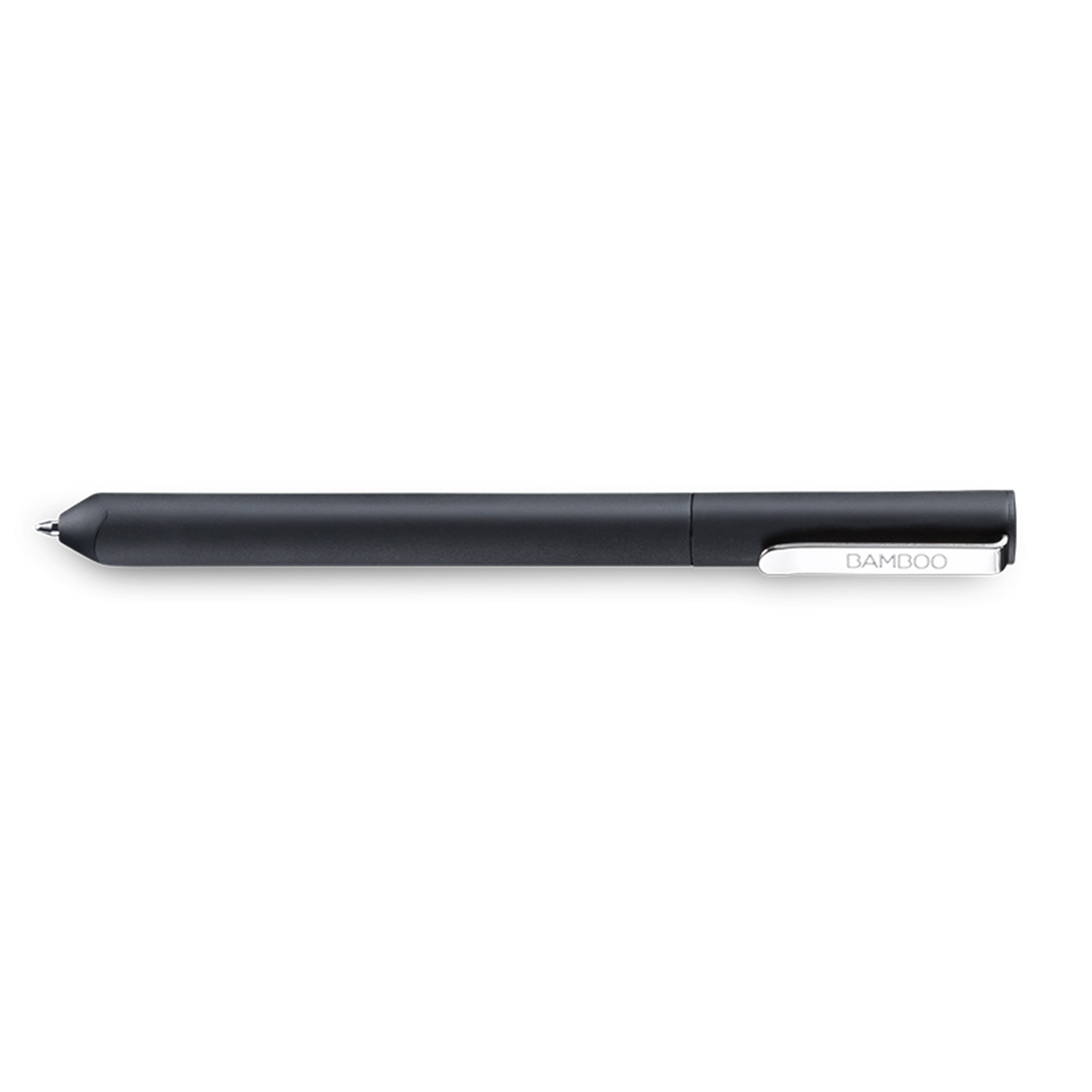

UP370800 – Wacom Ballpoint Pen

ACK425082 – notepads, A4, large, 3 pack (Bamboo Folio Large / Bamboo Slate Large)

ACK425081 – notepads, A5, small, 3 pack (Bamboo Folio Small / Bamboo Slate Small)

Color

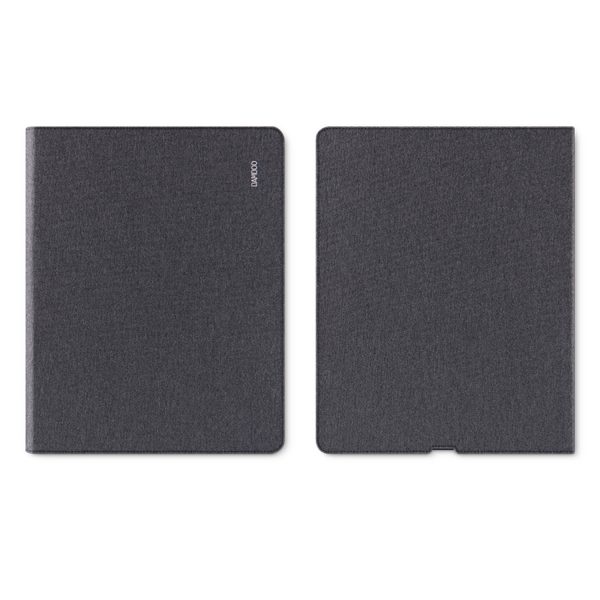

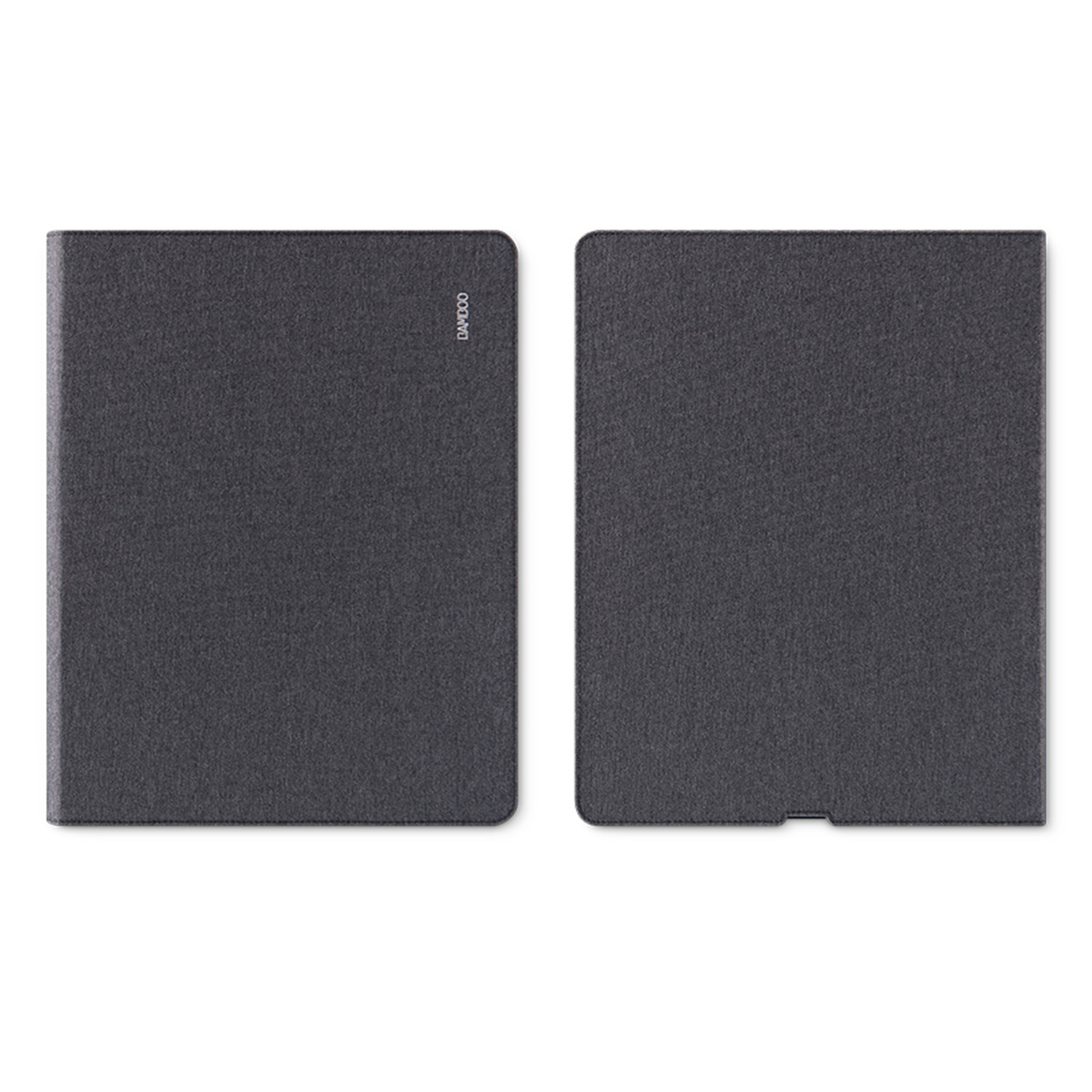

-Dark gray with gray accent (Bamboo Folio Large & Small)
-Medium gray with orange accent (Bamboo Slate Large & Small)

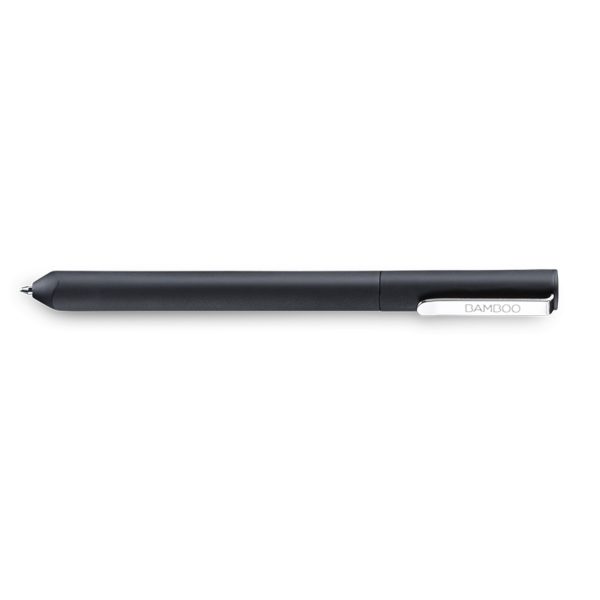

Technology

Electro-Magnetic Resonance (EMR)

Pressure levels

1024

Dimensions

-5.5 x 0.4 in
-140 x 11 mm

Weight

-0.6 oz
-17 g

Color

Black

Reading height

8 mm (0.3 in) from product surface

Connection

Bluetooth 4.0

Supported Paper Size

-Letter, 8 1/2 x 11 in A4, 210 × 297 mm.

(Bamboo Folio Large & Bamboo Slate Large)

-Half Letter, 8 1/2 x 5.4 in A5, 140 × 216 mm.

(Bamboo Folio Small & Bamboo Slate Small)

Supported Paper Thickness

About 80 pages (<8 mm, < 0.3 in)

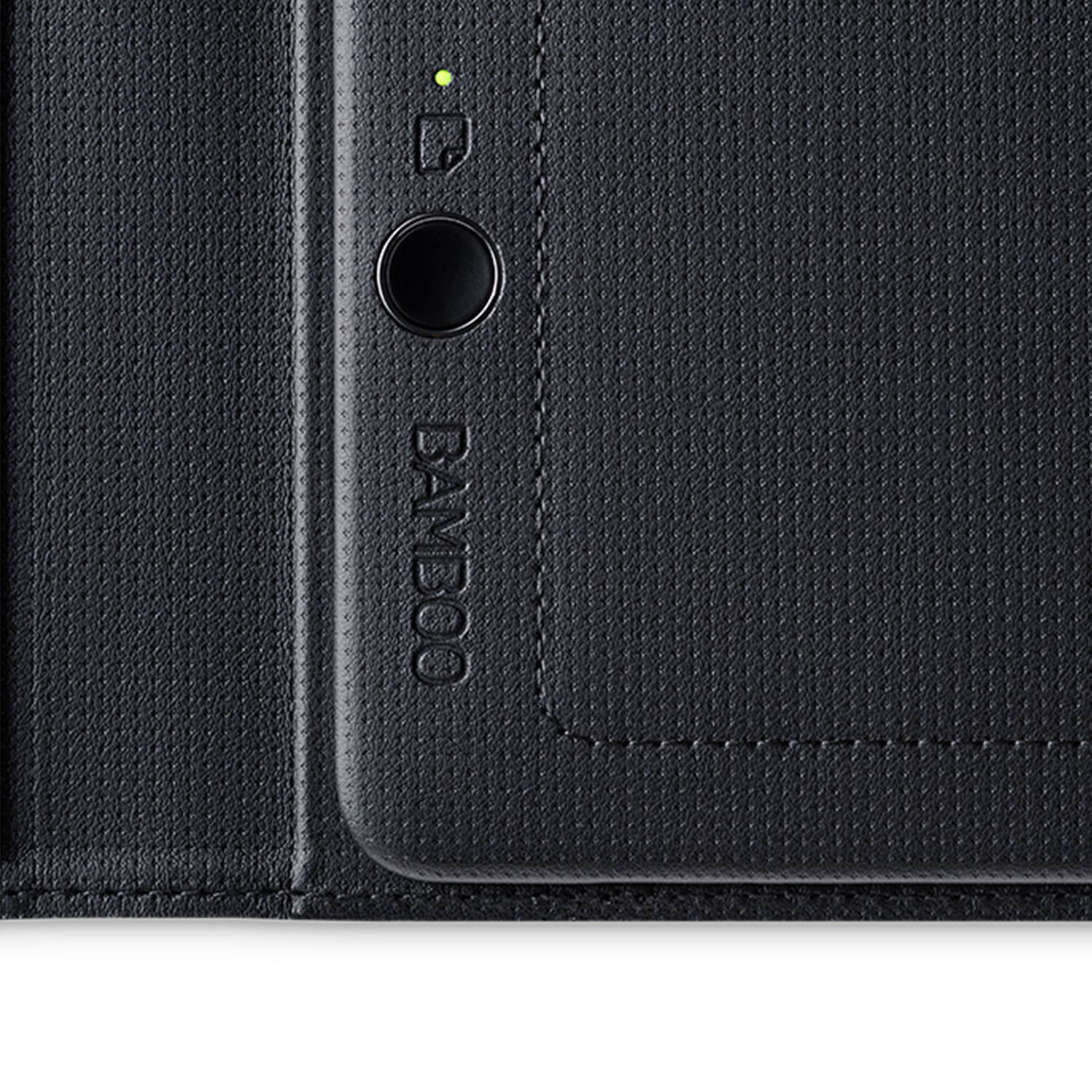

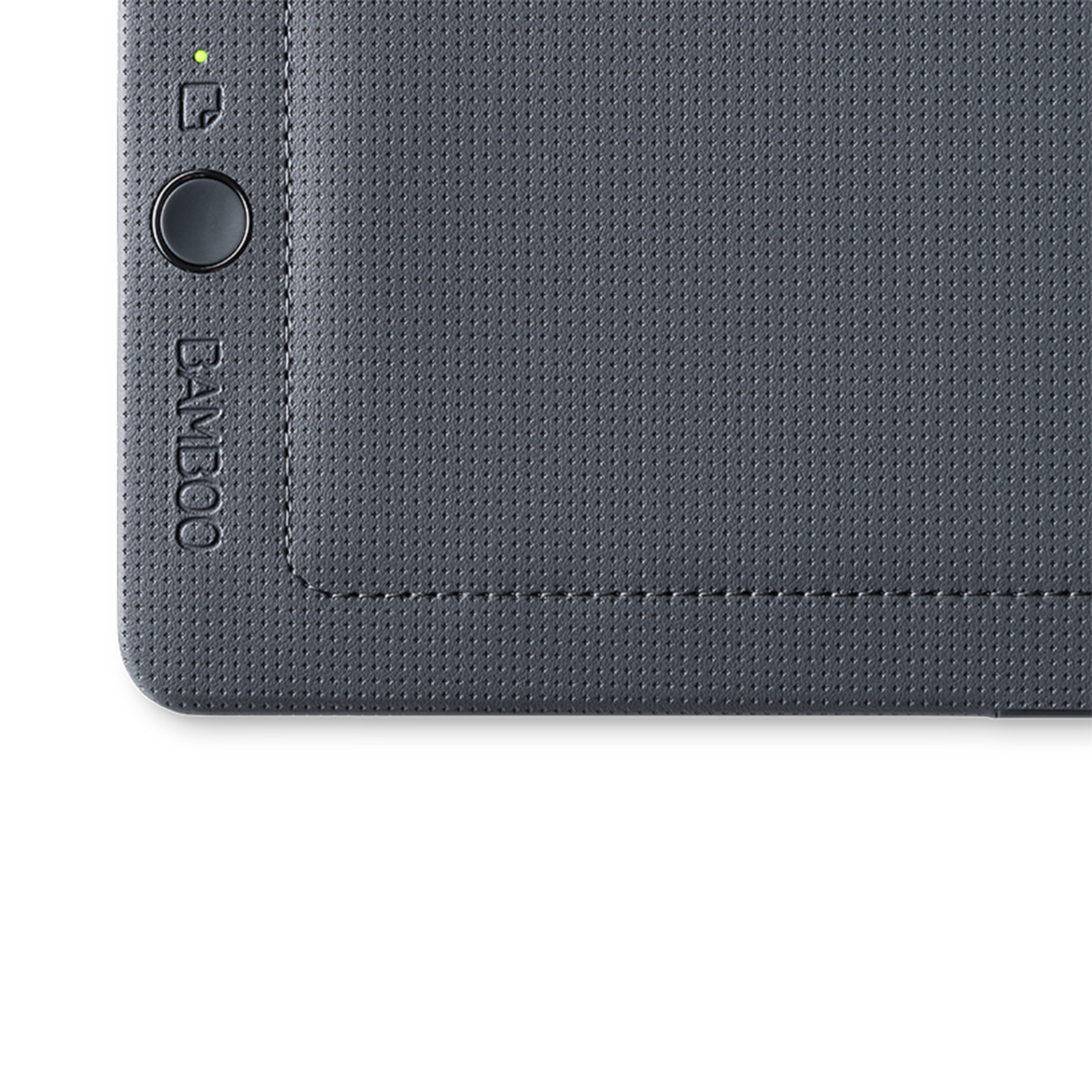

Buttons

1 multi-function button

Battery Type

Rechargeable Li-polymer battery

Wireless Battery Operation Time

8 hours (typical)

Battery Charging Time

2.5 hours (typical)

Battery weight

-18 g
-0.6 oz

Power Consumption

-Normal use: 50mA (approximately)

-Charging: 400mA (approximately)

Internal Storage (Offline mode)

100 pages
