Wacom Cintiq

Product type

Creative Pen Display

Model Code

Wacom Cintiq 16: DTK1660

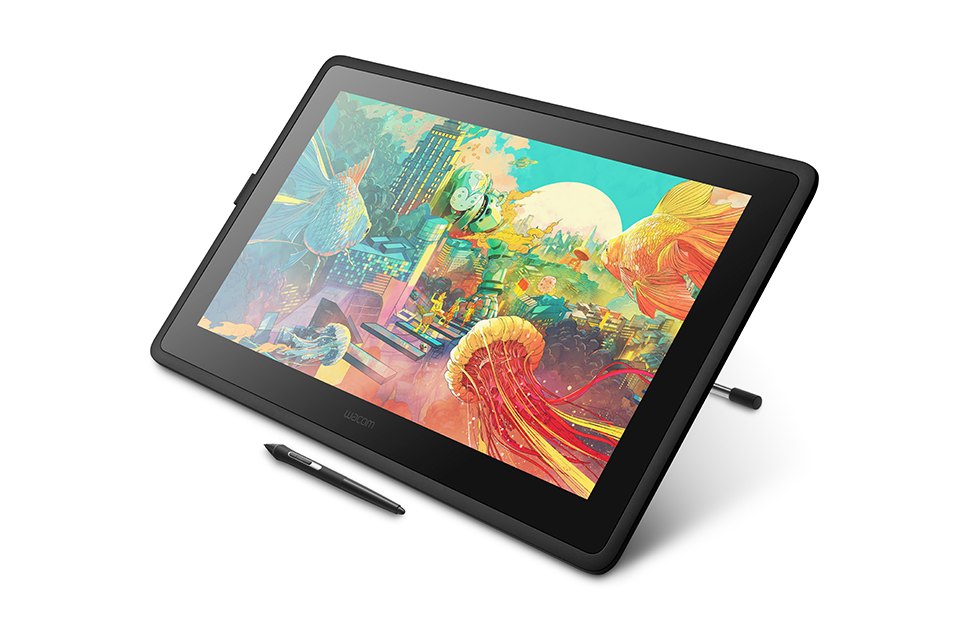

Wacom Cintiq 22: DTK2260

Product Dimensions (L x W x H)

Wacom Cintiq 16:

• 422 x 285 x 25 mm /16.6 x 11.2 x 1.0 in

Wacom Cintiq 22:

• 570 x 359 x 40 mm / 22.4 x 14.1 x 1.6 in

Product Weight

Wacom Cintiq 16:

• 1.9kg without optional stand

Wacom Cintiq 22:

• 5.6kg without stand

Productivity Boosters

• ExpressKeys™*
• Touch Ring*
• Radial Menu
• Precision Mode
• Display Toggle
• Dedicated Pan, Scroll, Zoom, Brush size.

*On optional EKR

Stand Adjustability

Wacom Cintiq 16:

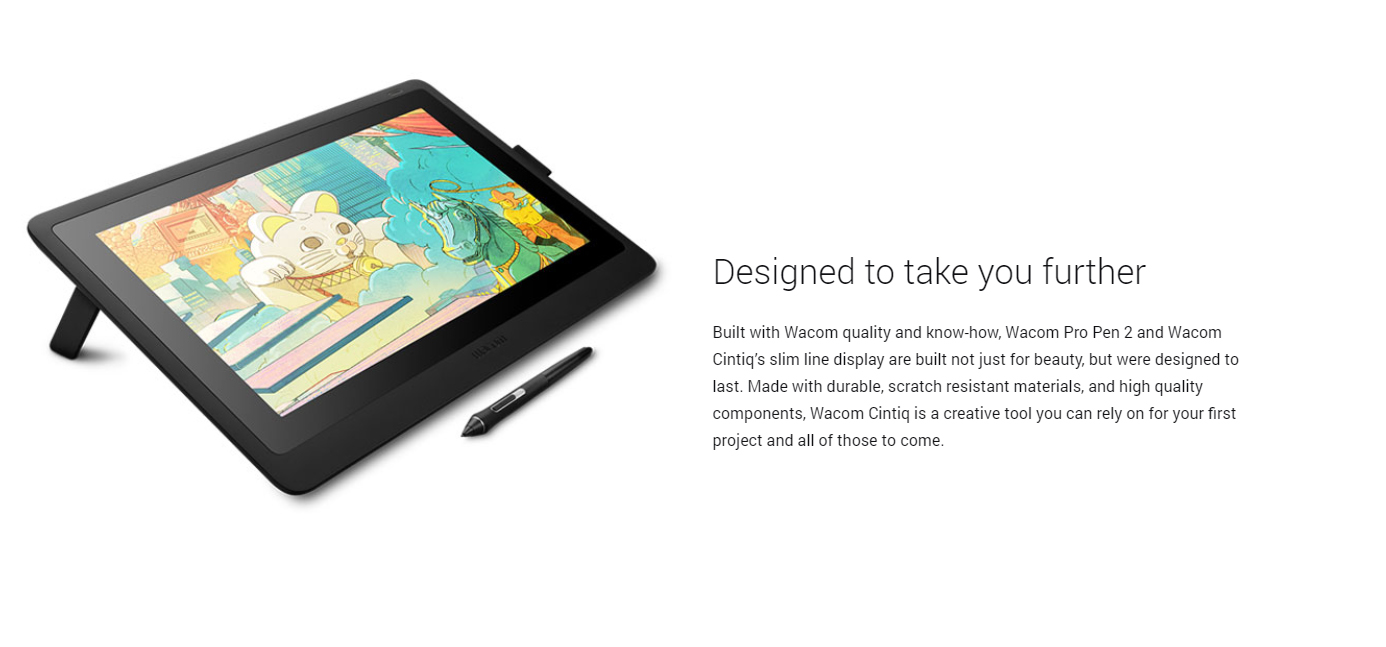

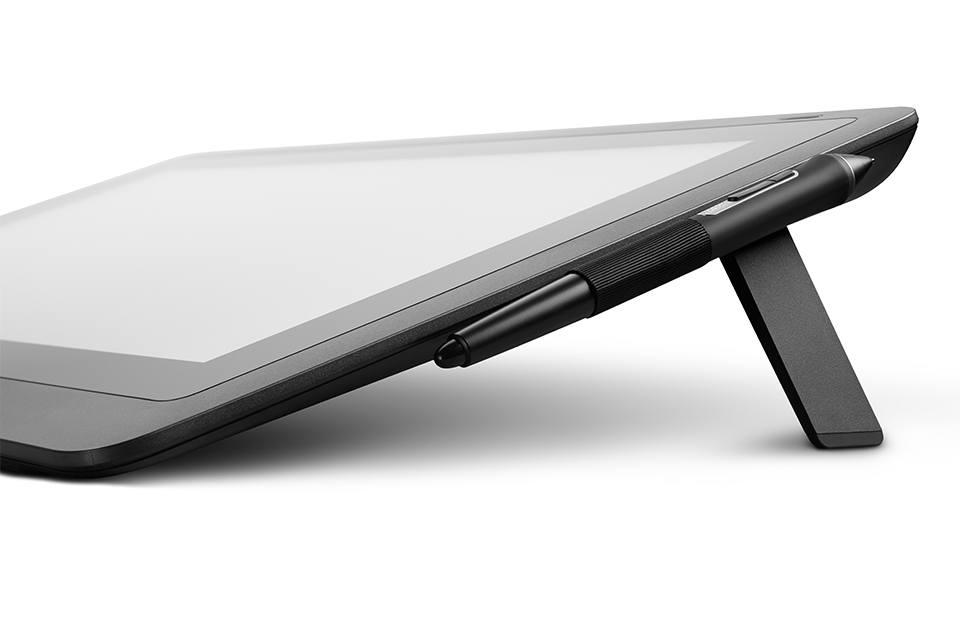

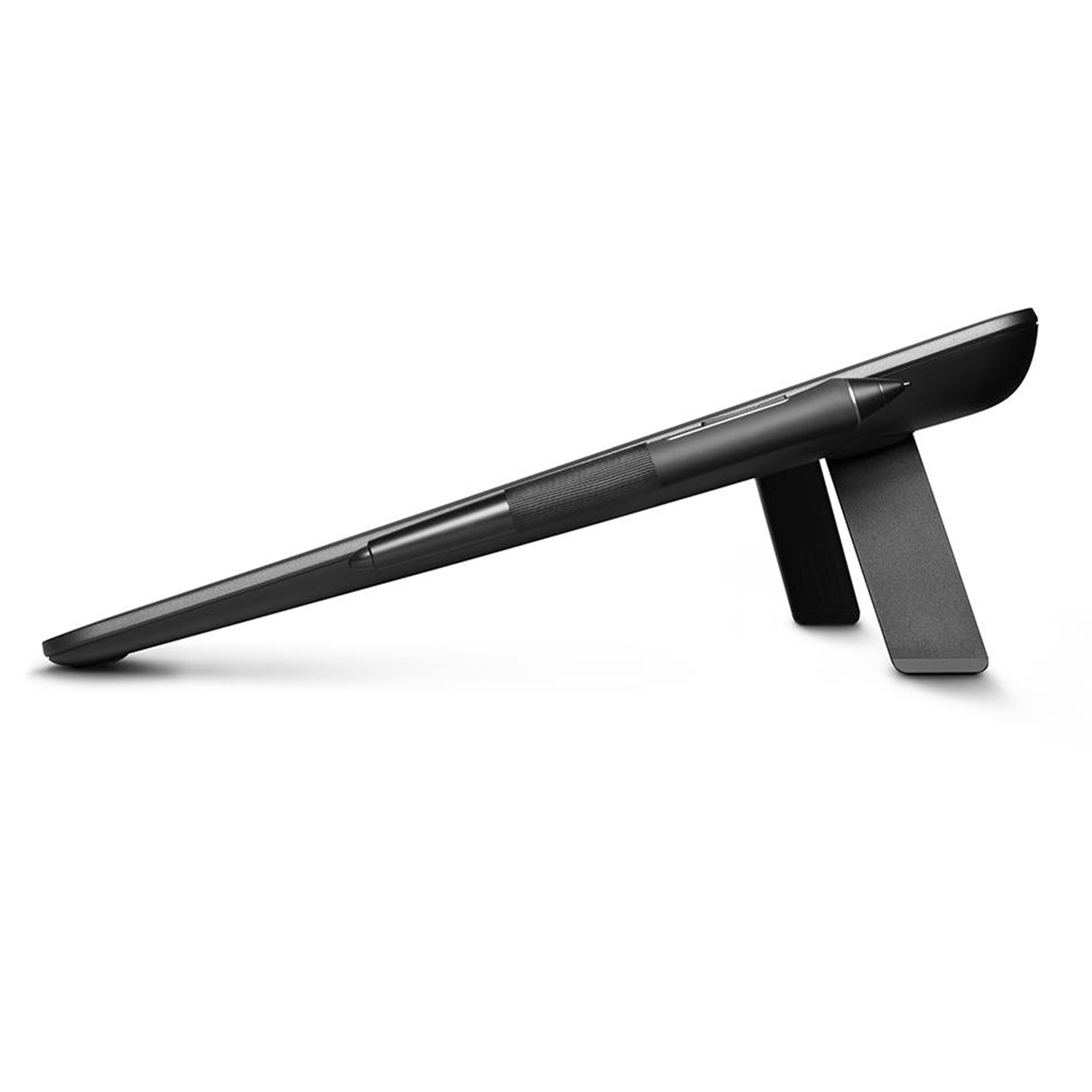

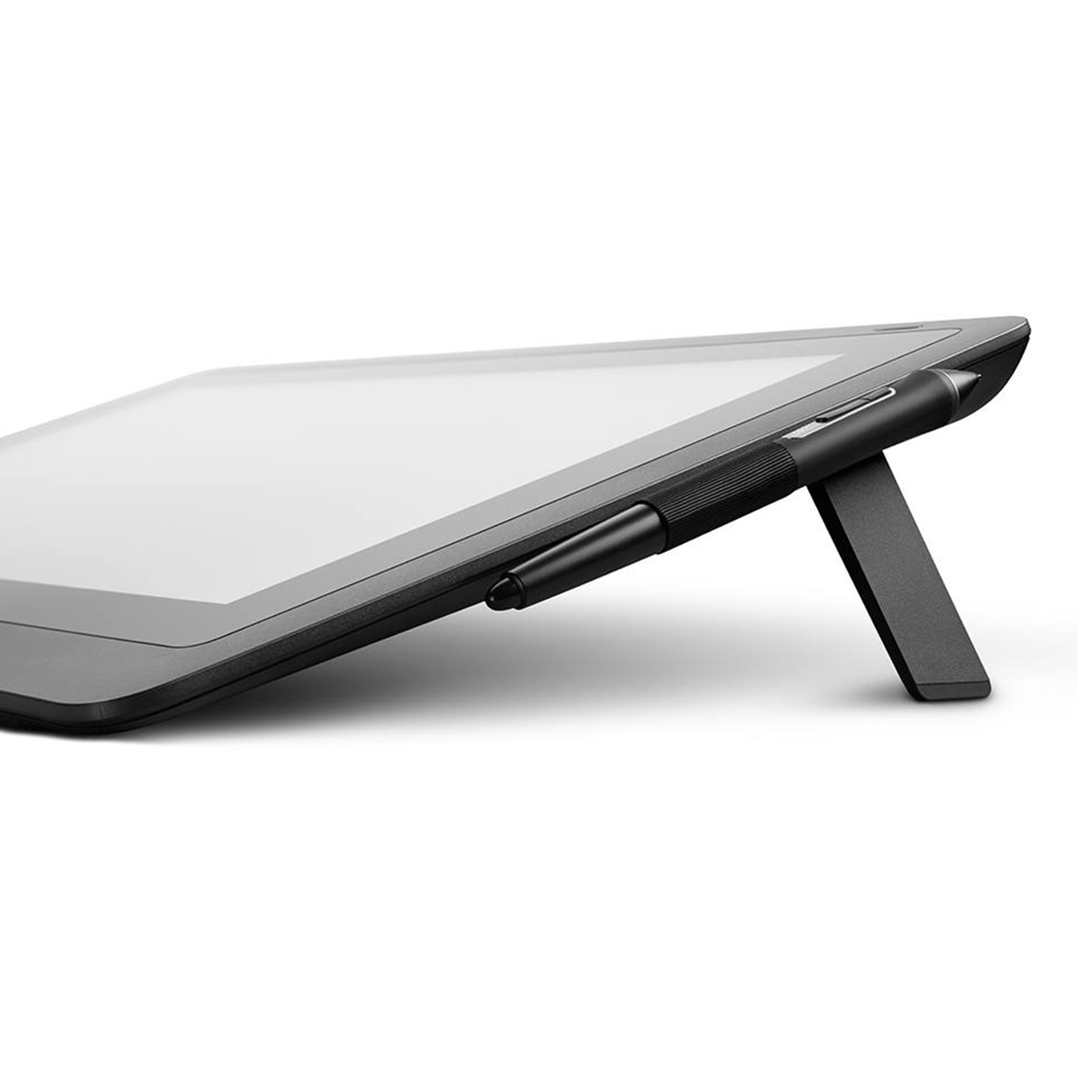

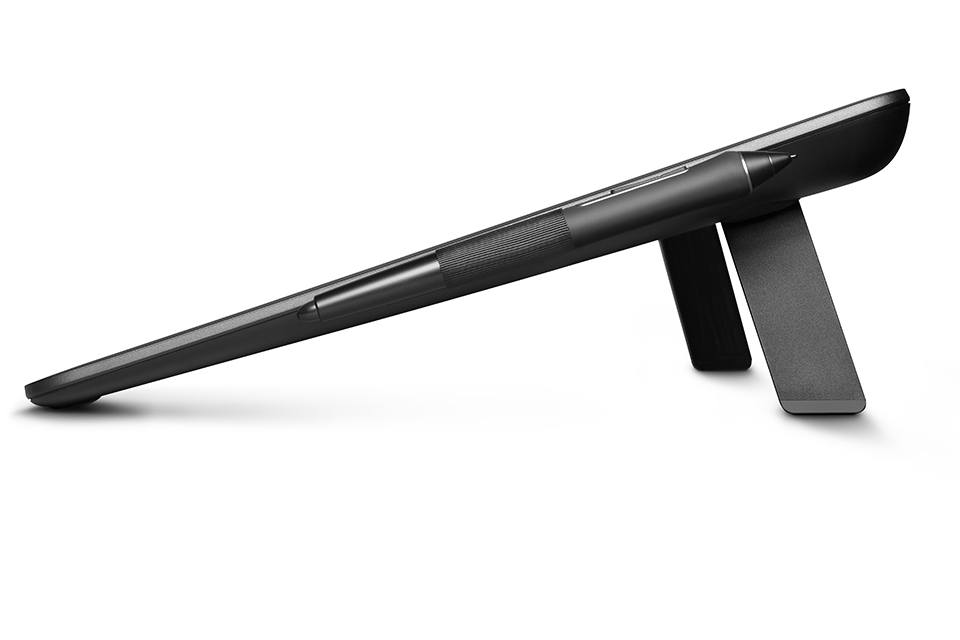

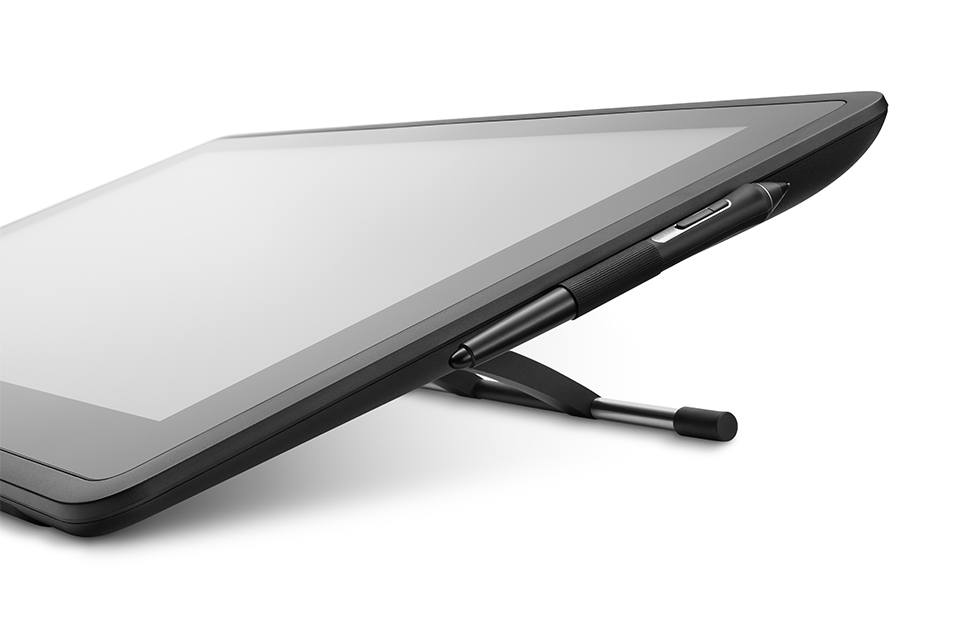

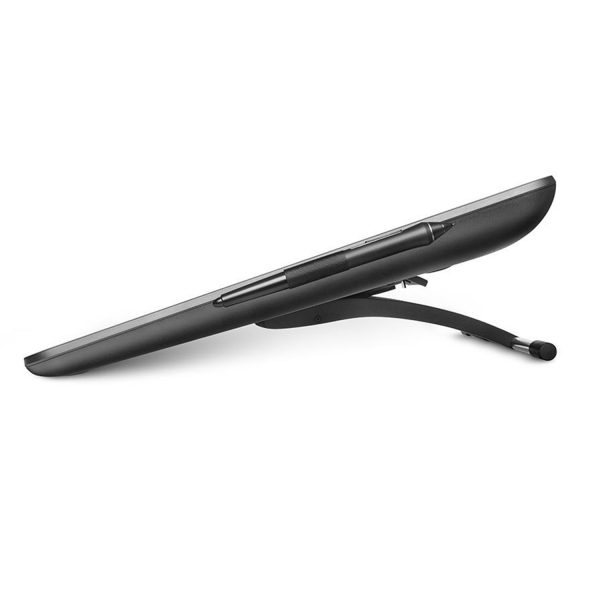

• 19 degrees using built-in, fold-out legs

Wacom Cintiq 22:

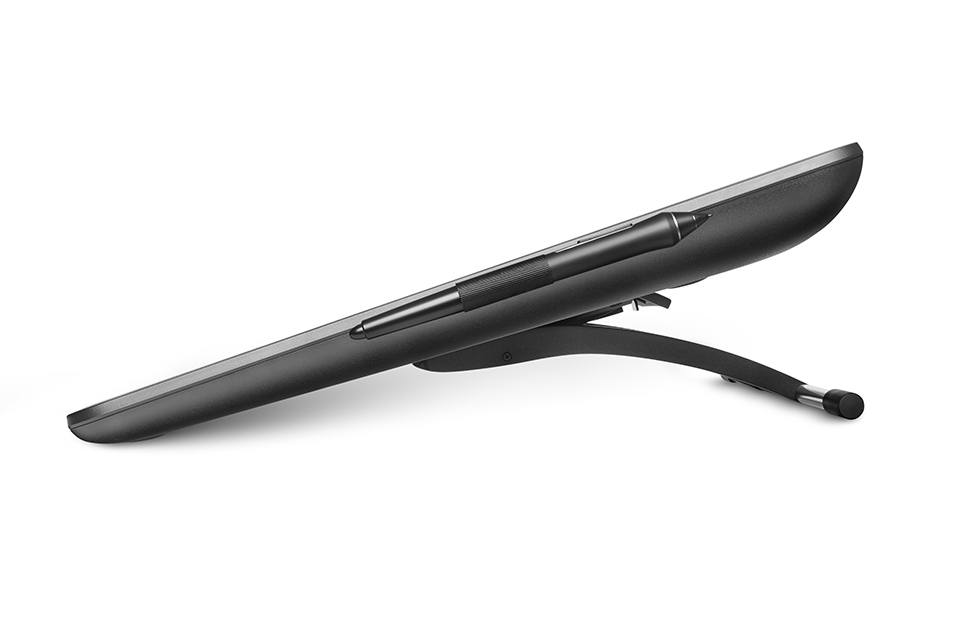

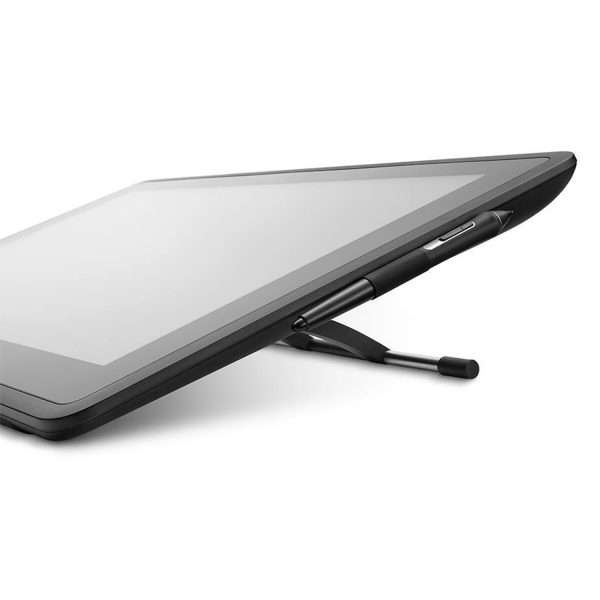

• 16-82 degrees using included Wacom Adjustable Stand

Power Supply Input

100 to 240 VAC, 50/60HZ

Power Supply Output

Wacom Cintiq 16: 12 VDC, 3A (max)
Wacom Cintiq 22: 12 VDC, 5A (max)

Security

Kensington® Lock Port (lock purchased separately)

Warranty

Wacom Cintiq 16 and Wacom Cintiq 22:

• 1 year in USA, Canada, Latin America, Japan, Asia Pacific and China
• 2 years in Europe, Middle East and Africa

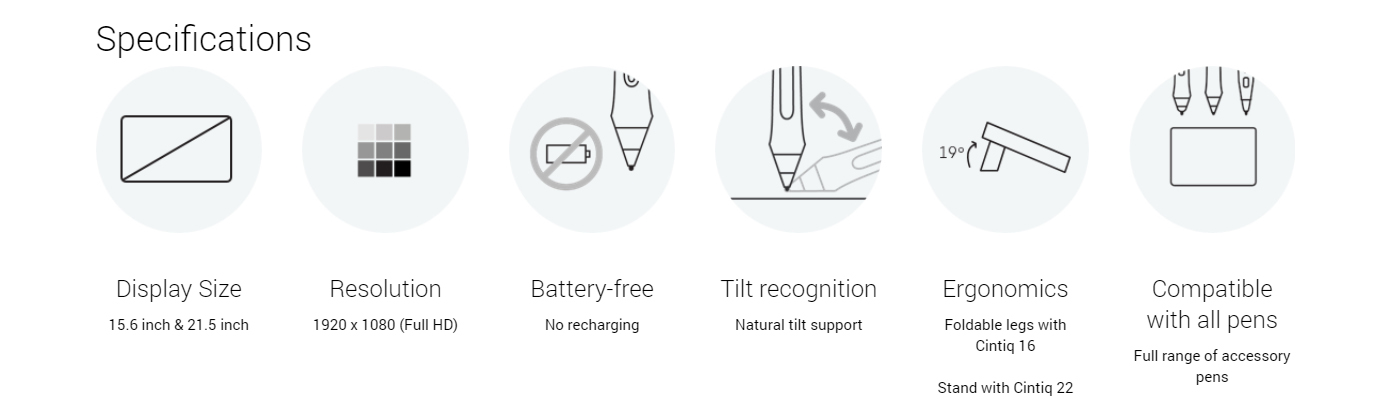

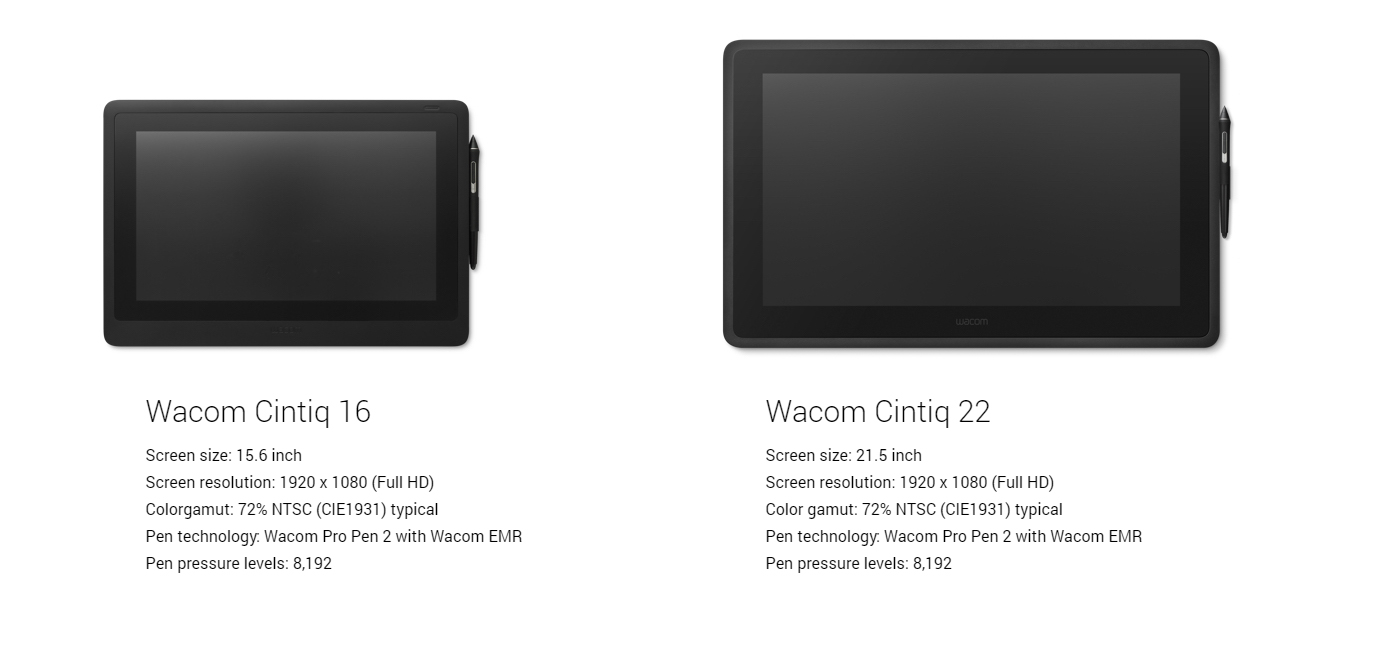

Screen Size (measured diagonally)

Wacom Cintiq 16: 15.6 in / 40 cm

Wacom Cintiq 22: 21.5 in / 55 cm

Display Resolution

1920 x 1080 (Full HD)

Display Technology

IPS

Color Depth

16.7 million (8 bits)

Aspect Ratio

16:9

Viewing Angle

Wacom Cintiq 16: 176/176 degrees (typ)
Wacom Cintiq 22: 178/178 degrees (typ)

Contrast Ratio

1000:1 (typ)

Brightness

210 cd/m2 (typ)

Response Time

Wacom Cintiq 16: 25ms
Wacom Cintiq 22: 22ms

Active Area

Wacom Cintiq 16: 344 x 194 mm / 13.6 x 7.6 in

Wacom Cintiq 22: 476 x 268 mm / 18.7 x 10.5 in

Color Gamut Coverage Ratio

72% NTSC (CIE1931) (typ)
96% sRGB (CIE1931) (typ)

Multi-Touch

No

Pen Type

Pressure-sensitive, cordless, battery-free

Pen Technology

Patented electromagnetic resonance technology

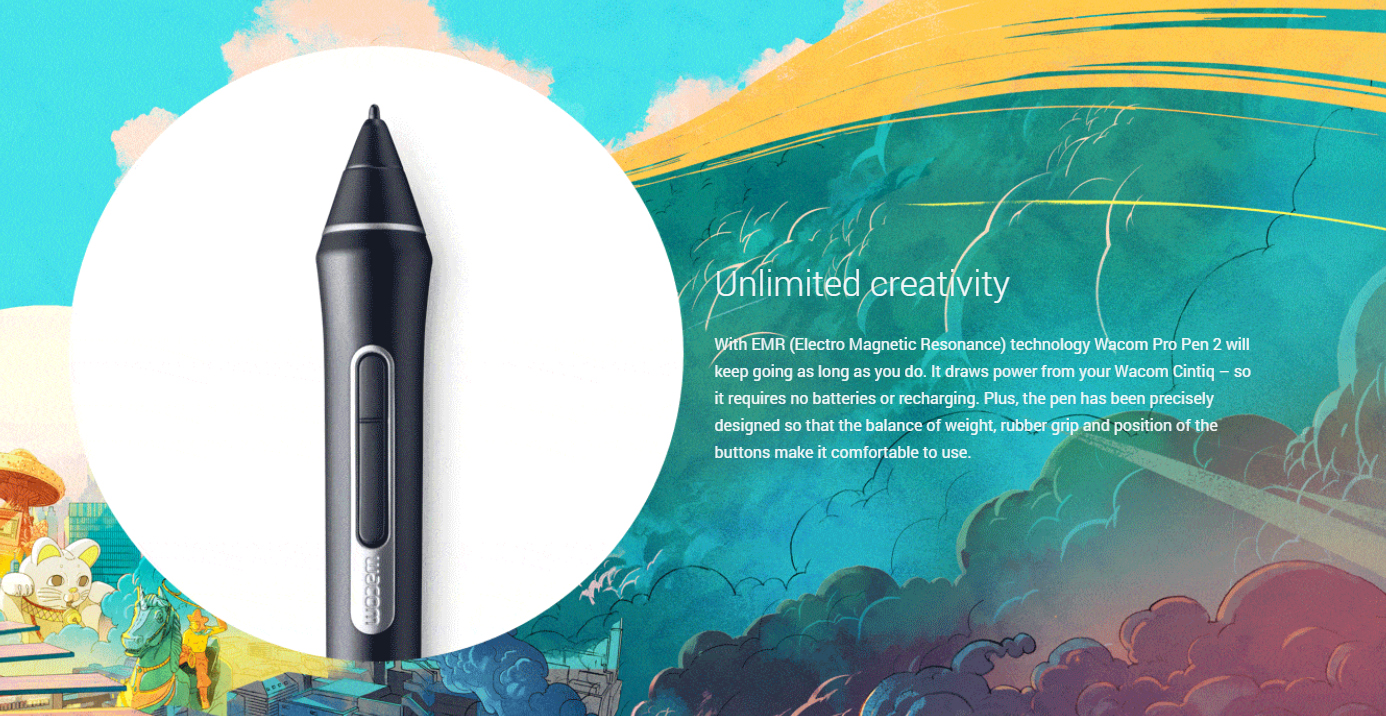

Pen Name

Wacom Pro Pen 2

Pen Pressure Levels

8192 levels (pen and eraser)

Pen Tilt Supported

60 degrees

Number of switches

2 side switches

Pen Resolution

5080 lpi

Hardware Requirements

HDMI port and standard USB-A port

Ports Included

Wacom Cintiq 16:

• 3-in-1 cable port only

Wacom Cintiq 22:

• HDMI port
• USB-A port

System requirements

Windows® 7 or later (latest service pack/build), OS X 10.12 or later (latest update); Internet access for driver download

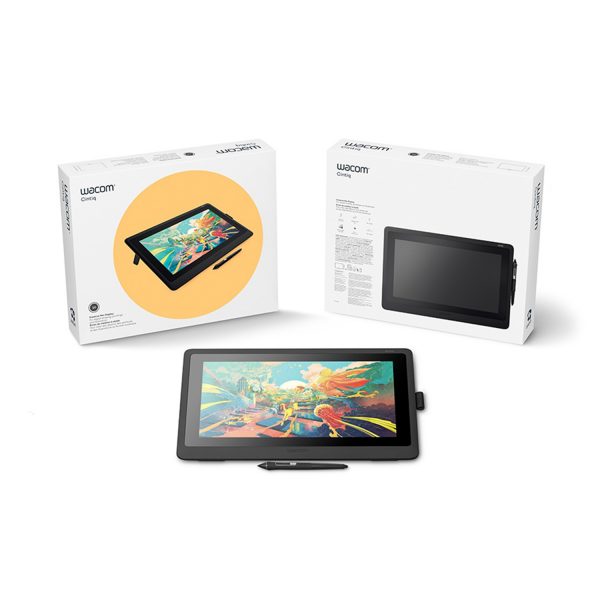

What’s Included

Wacom Cintiq 16

• Wacom Cintiq 16 pen display
• Wacom Pro Pen 2

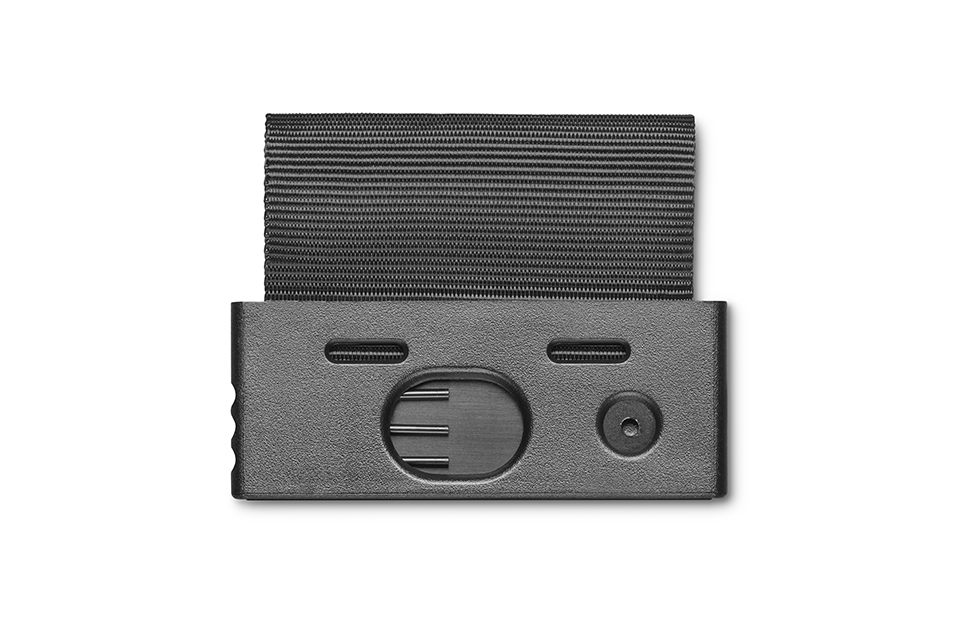

• Detachable pen holder with 3 replacement nibs (standard) and nib removal tool
• 3-in-1 cable (1.8m)
• AC adaptor (12V, 3A, 36W)
• Power cable (1.8m)
• Quick Start Guide
• Warranty card (Japan, Asia Pacific, China only)
• Regulation sheet

Wacom Cintiq 22

• Wacom Cintiq 22 pen display
• Adjustable Stand
• Wacom Pro Pen 2
• Detachable pen holder with 3 replacement nibs (standard) and nib removal tool
• HDMI cable (2m)
• USB 2.0 cable (2m)
• AC adapter (12V, 5A, 60W)
• Power cable (1.8m)
• Quick Start Guide
• Warranty card (China only)
• Regulation sheet

Optional Accessories

• Wacom Adjustable Stand
• Wacom Pro Pen 2
• Wacom Pro Pen Slim
• Wacom Pro Pen 3D
• ExpressKey™ Remote
• Wacom Keyboard
• Wacom Softcase Large (Wacom Cintiq 16 only)
• Replacement Wacom nibs (standard) for Wacom Pro Pen 2
• Additional previous generation pens (Classic, Airbrush, Art, Pro Pen)
